Series 90 Pump & Motors

• Speeds up to 5000 rpm
• Pressure up to 480 bar
• High overall efficiency
• Compact & Lightweight
• Long service life

Series 51 Motors

• Speeds up to 6250 rpm
• Pressure up to 480 bar
• 4 frame size, 80-250 cc/rev
• Closed or open circuit installation
• The most technically advanced hydraulic unit

Series 45 Axial Piston Open Circuit Pumps

• Displacements from 25cm³-147cm³ [1.53-8.97in³/rev]
• Speeds up to 3600 rpm
• Pressures up to 310 bar [4495 psi] continuous, and 400 bar [5800 psi] peak
• Variety of control system options including load sensing and pressure compensated
• Through-drive capability for multi-circuit systems
• Range of mounting flanges, shafts, and porting options for ease of installation

Axial Piston Fixed and Variable Displacement Motors (Series 40)

• Robust and easily serviced
• 4 sizes of fixed displacement motors
• Compact
• Short installed length
• Pressures up to 350 bar

Gear Pumps & Motors

• Displacement 1 - 56 cc/rev
• Pressure 140 - 250 bar
• Pressure sensitive clearance sealing
• Tandem units with through drive
• High efficiency

Radial Piston Pump

• Displacement 19 - 90 cc/rev
• Pressure up to 350 bar
• Hydrostatically balanced bearings
• Numerous control systems
• For open & closed circuits

H-Series Motors

• Displacement 40 - 369 cc/rev
• Torque up to 35 kgf • m
• High side load capacity
• Excellent starting torque

2000 Series Motors

• Displacement 78 - 393 cc/rev
• Torque up to 65 kgf • m
• Geroler design
• High volumetric efficiency

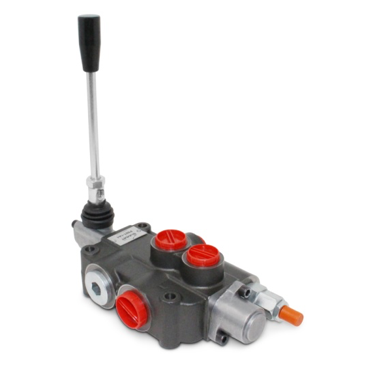

Single Section Directional Control Valve

• Brand: Hydro-Fluid
• Part Number: ZT12-1
• Port size: 1/2” OR 3/8”

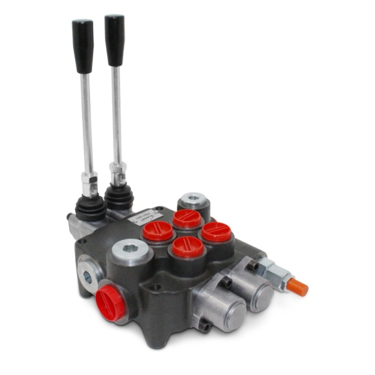

2 - Section Directional Control Valve

• Brand: Hydro-Fluid
• Part Number: ZT12-2
• Port Size: 1/2” OR 3/8”

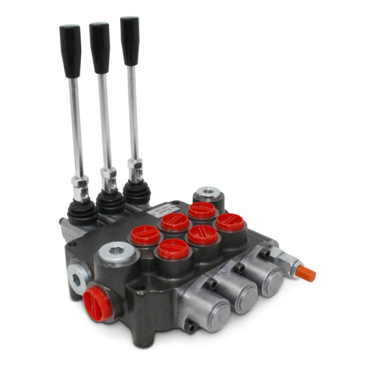

3 - Section Directional Control Valve

• Brand: Hydro-Fluid
• Part Number: ZT12-3
• Port size: 1/2” OR 3/8”

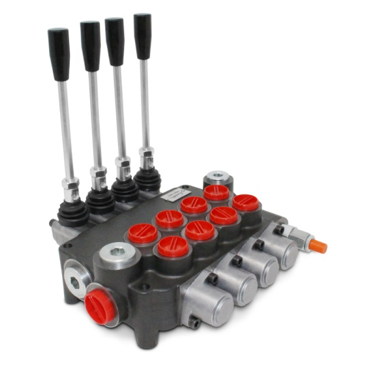

4 - Section Directional Control Valve

• Brand: Hydro-Fluid
• Part Number: ZT12-4
• Port size: 1/2” OR 3/8”

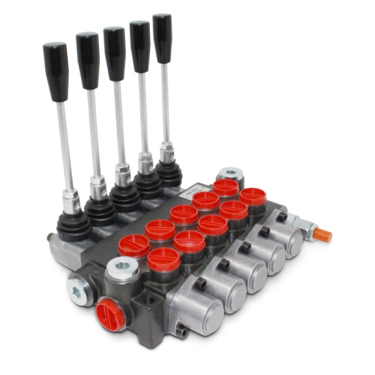

5 - Section Directional Control Valve

• Brand: Hydro-Fluid
• Part Number: ZT12-5
• Port size: 1/2” OR 3/8”

4 - Section Hydraulic Control Valve with Pneumatic Control

• Part Number: DVC100-40Q
• Port size: G3/4”

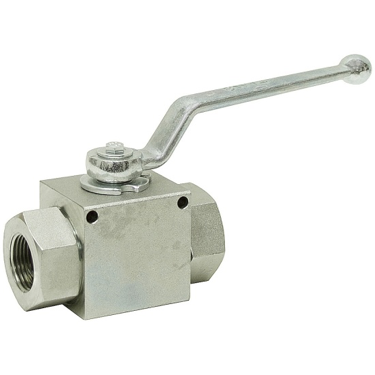

2-Way High Pressure Ball Valve

• Port size: 3/4” & 5/8”
• Flow Rate: 50 GPM
• Pressure Rating: 5800 PSI

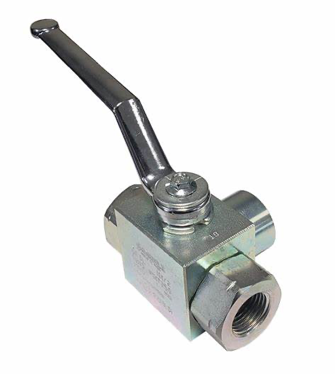

3-Way High Pressure Ball Valve

• Port size: 3/4” & 5/8”
• Flow Rate: 50 GPM

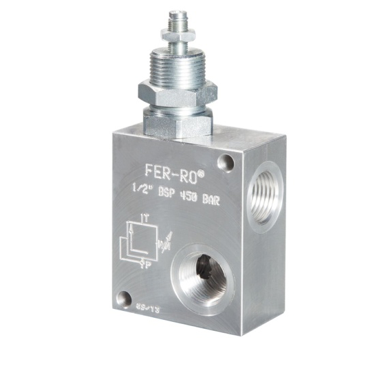

Hydraulic Pressure Relief Valve

• Pressure relief valves are used in hydraulic systems to limit the system pressure to a specific set level. If this set level is reached, the pressure relief valve responds and feeds the excess flow from the system back to the tank.
• 1” Port Size or 3/4” port size

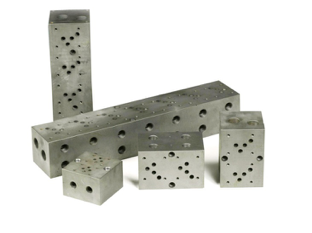

Hydraulic Manifold Block Valve

• A component that regulates fluid flow between pumps and actuators and other components in a hydraulic system
• Oil port thread:
• Max pressure(Steel):
• Max pressure(Alum):
• Working pressure:

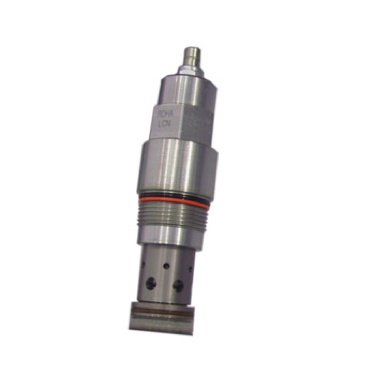

Cartridge Valve

• Direct acting full flow solenoid cartridges will operate reliably at their maximum pressure (3600 psi) and flow ratings (10 GPM).
• All pressure and flow ratings are conservative to ensure that the final circuit will function as the designer intended.
• Within each cartridge version, the normally open and normally closed configurations have virtually identical performance, allowing them to be used interchangeably.

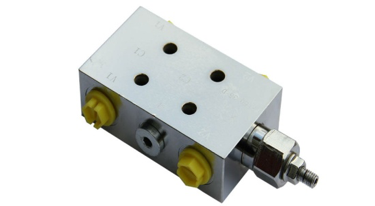

Counterbalance Valve

• Counterbalance valves are used with cylinders to safely hold suspended loads and deal with over-running loads.
• This valve can also be used with hydraulic motors and is then commonly called a brake valve.
• Port Size:

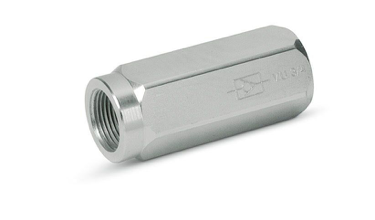

Check Valve

• Check valve permit free oil flow in one direction and block oil flow in the opposite direction.
• Check valves may also be used as a directional or pressure control in a hydraulic system.

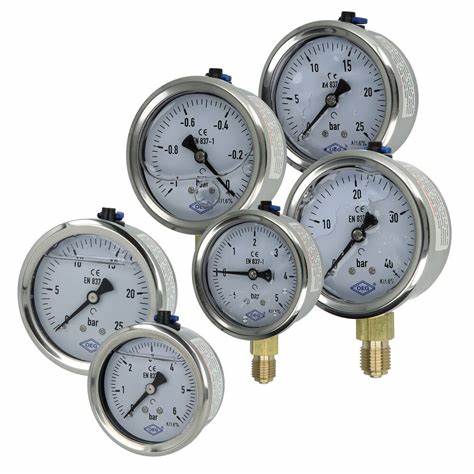

Pressure Gauges

• Thread: 1/2” & 1/4”
• Pressure Range: 250PSI - 10000PSI
• Connection: Bottom & Back
• Diameter Size: 2”, 4” & 6”

Power Steering Units

• Twelve displacement, 49 - 780 cc/rev
• Pressure up to 175 bar for all models
• Eliminate linkage
• Continuous & unlimited control action
• Low input torque required
